Stainless Steel Synchronized CNC Press Brake Iron Bending Machine with and Competitive

slider stroke (mm) : 1250 mm

automatic level : Fully Automatic

throat depth (mm) : 320 mm

machine type : Synchronized

length of working table (mm) : 2500 mm

width of working table (mm) : 400 mm

dimension : 2600*1500*2200

place of origin : ANHUI

brand name : GENUO

material / metal processed : Brass / Copper, Stainless Steel, Alloy, Carbon Steel, Aluminum

automation : Automatic

extra services : End Forming

weight (kg) : 4800

motor power (kw) : 7.5 kw

key selling points : Automatic

warranty : 2 Years

machinery test report : Provided

video outgoing-inspection : Provided

core components : Bearing, Motor, Pump, Gear

Product name : Hydraulic Cnc Bending Machine

Application : Stainless Plate Bending

Keyword : Hydraulic Press Break

Usage : Metal Sheet Folding Bending

Type : Metal Bender Tools

Condition : New

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works

Showroom Location : None

Marketing Type : New Product 2020

Year : 2024

Warranty of core components : 2 years

Price : $12,000/sets 1-4 sets

Contact Now

Products Description

Stainless Steel Synchronized CNC Press Brake Iron Bending Machine with and Competitive

For more information, please click here! Get machine price discount click here!

New Machine description

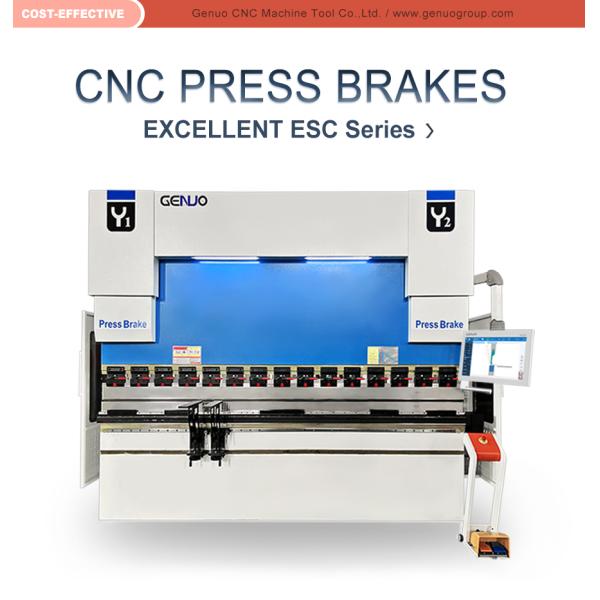

GENUO's Excellent ESC series is the latest generation of high-performance synchronized

CNC Press Brake.Combining GENUO's independently developed controller,it maximizes

value creation and reduces costs.User-friendly operating system and first-class design.

Adhering to the philosophy of GENUO (Details Create Quality).

With super quality and high precision, it also has a huge competitive advantage.

More convenient to use, high cost performance!

ETC-16T is a new generation of performance

bending control system of GENUO dedicated to

synchronous press brakes.

The system has rich interfaces, which can be

easily connected to the automatic production line

as a bending unit. It can cooperate with industrial

robots in interactive operation,to the greatest

extent freefrom manual intervention, improve the

accuracy and efficiency of the equipment.

● 15.6 "LED real color LCD screen with friendly man-

machine interface, menu operation is easy to learn

and easy to use.

● The Linux operating system is stable and reliable,

High sensitivity resistive touch screen, support

glove ope ation.

● Intelligent algorithm and Flexible programming,

Automatically calculate the bending process,

three modes for vou to choose from

To Learn More Click Here >>

Auto Crowing System ：To confrm a constant bend angle, manual or CNC crowning is essential which will offset potential deviations and allow for possible tooling wear to maintain parallel contacting surfaces. CNC crowning systems allow the press brake control to be preprogrammed

with machine characteristics and defection data. Adjust the calculate and setting accordingly for

different characteristics of different materials. Backgauge System：Establishing the right back gauge for your projects will allow for increased part production and precision.From intricate parts which typically require more axes to large quantities that require more time and therefore increased cost, the correct back gauge for each

job is essential to lowering costs per part which ultimately benefts your bottom line.

Standard Equipment					Optional Equipment
◆GENUO ETC-16T 4 Axis CNC Control					◇ETC-16T 5 Axis/7 Axis CNC Control
◆Integral welded rigid high tensile steel frame					◇DSP or SDKELI Lasersafe protection guard
◆High precision Y1,Y2 axis synchronized closed-loop feedback					◇Energy saving & low noise main servo SVP control
◆Accurate X axis back gauge system					◇2 Axis(X,R) or 4-Axis (X,R,Z1,Z2)back gauge
◆CNC Motorized crowning system					◇The CNC Bending Sheet Follower
◆European-style punch and 4V/2V/1V Dies					◇WILA type top and bottom tool clamping system
◆Fast punch clamps and movable sliding front support					◇Bending tools management cabinet or trolley

Product Paramenters

Model	Nominal Pressure (kn）	Length of Table （mm）	Distance Between Columns （mm）	Ram Strokes （mm）	Throat Death (mm)	Open Height (mm)	Motor Power （kw）	Overall Dimension (L x W x H) (m)
HSC	/	A	B	C	D	E	/	/
40T1600	400	1600	1250	150	300	420	4	2.01.82.4
63T2500	630	2500	1960	150	320	420	5.5	2.91.82.4
100T3200	1000	3200	2600	200	400	480	7.5	3.91.92.6
100T4000	1000	4000	3200	200	400	480	7.5	4.61.92.7
125T3200	1250	3200	2600	200	400	480	11	3.91.92.6
160T3200	1600	3200	2600	200	400	480	11	3.91.92.6
200T3200	2000	3200	2600	200	400	480	15	3.92.12.8
320T4000	3200	4000	3200	200	400	480	22	4.82.13.2
400T6000	4000	6000	4900	320	500	600	30	6.52.33.8
The above data is only for reference only,to prevail in kind. More specifications available. Please click here!

Recommend Products

Company Profile

FAQ

Q1: Are you manufacturer or trading company ?
A2: We are factory with more than 20 years of technology and experience.

Q2: How long is your delivery time ?
A2: General speaking, if the machines is in stock, we can delivery them with 3-7 days, If the quantity is 1-2 container, we can give you with 25-35 days,if the quantity is more than 2 container and you are very urgent, we can let factory priority produce your goods.

Q3: Do you provide samples ? Is it free or extra ?
A3: For new customer, We can provide charge samples for standard fastener. For old customer,We will send you free samples But the clients will pay the express charges.

Q4: What is your terms of payment ?
A4: We can accept T/T,LC for general order ,Paypal and Western union for small order or samples order. Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q5. How about your machine quality?

A5:Our machines distribute worldwide to about 50 counties where there are metal plate ind ustry ,there are Brilliant machines And where there are our machines,there are good reputation and terminal user satisfaction.

Q6.How about your after-sale service?
A6:1.Technical solutions: we can provide technical solutions within one day.
2.Online video: Show you machine working video in factory.( update every week)
3.Installation service: This is available with all of our machines,live video can be provided. We can also dispatch technician to customer's factory for installation machines.

(Customers only need to pay for the airfare and hotel expense.)
4.Training service: Our technician will teach you how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5.Quality guarantee: 2 years warranty, we provide lifetime service. We arrange final test before shipment, After making sure machine is the best performance, then make shipments.
6.100% response rate: we will reply your questions within 12 hours.
